TG-eBank-241F/261F
Integrated air-cooled solar-storage cabinets for commercial and industrial use
1780730864484537
1780730896390881
1780730884644507

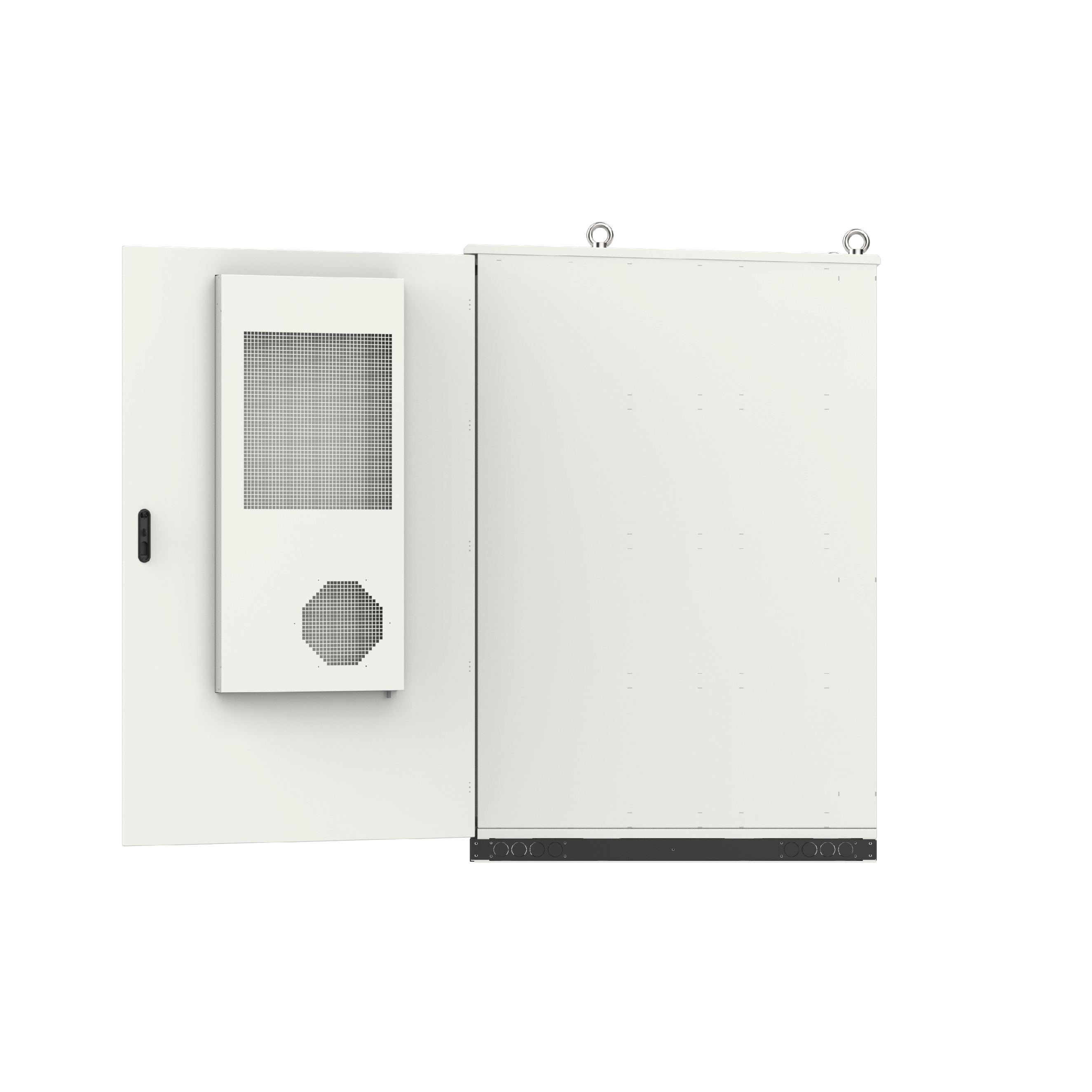

1780730879662141

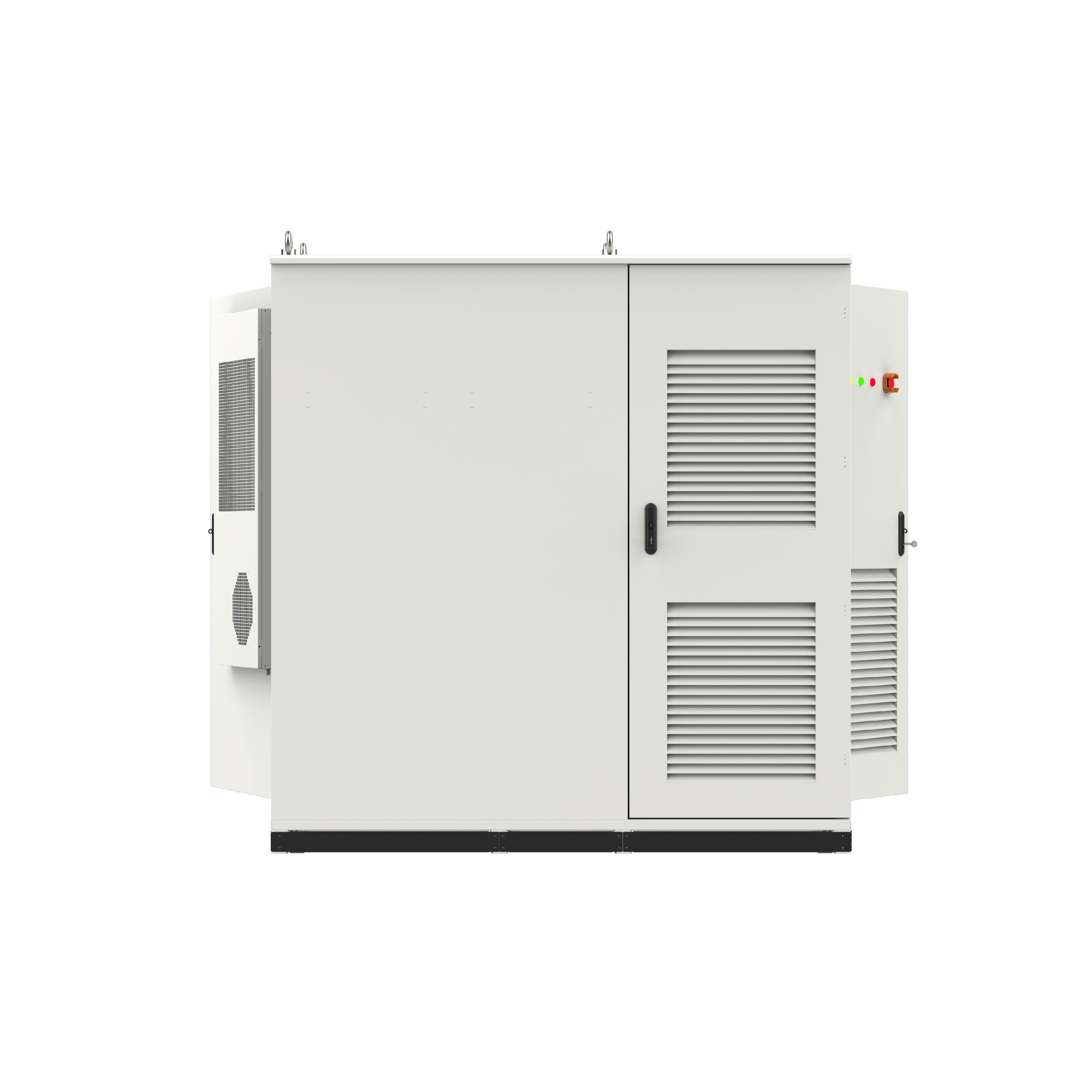

1780730887272066

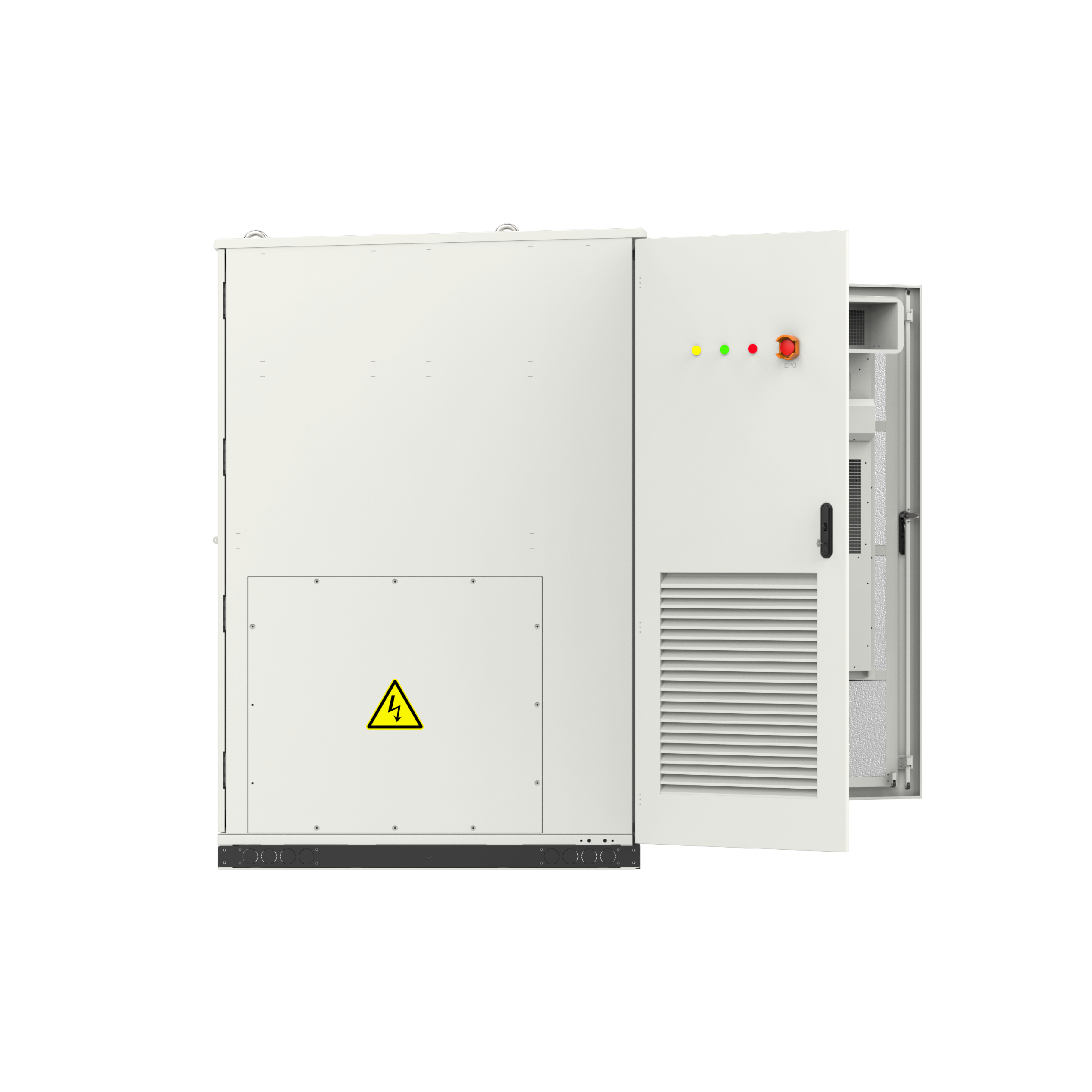

1780730891407971
Product advantages
1762343074366913
Native VSG Grid-Forming
Builds stable AC bus independently for off-grid/weak-grid scenarios. Millisecond grid-tie/off-grid switching ensures zero load interruption.
1762343074682969
Highly Scalable Parallel Operation
Up to 24 units parallel (pure grid-tie/off-grid), 6 units (hybrid). Single cabinet: 125kW/241kWh, max expandable to 3000kW/5787kWh.
1762343074800005
High Safety & Durability
LFP cells with ≥6000 cycles @70% EOL, 10+ year system lifespan. Three-level protection for long-term unattended outdoor operation.
1762341106295862
All-In-One Integrated Design
Integrates PV MPPT, PCS, STS, batteries and monitoring in one cabinet. 60% faster deployment, 40% smaller footprint, 15%+ lower lifecycle cost.
Technical specifications
1780730864484537
1780730884644507
1780730896390881
ModelTG-eBank-241FTG-eBank-261F
Battery Parameters

Battery MaterialLFP
Rated Voltage768V832V
Voltage Range600~876V728~936V
Rated Energy241kWh261kWh
Rated Charge/Discharge Power105KW125kw
Maximum Charge Current157A
Cycle Life6000 cycles at 70% end of life8000 cycles @ 70% end of life
Photovoltaic Parameters (Optional)

Rated Power120kW
Rated Input Voltage600Vdc
Maximum Input Voltage1000Vdc
MPPT Voltage Range150～950Vdc
Photovoltaic Input Current45A*8
AC Side Parameters

AC Rated Input/Output Power105kVA125kVA
AC Maximum Input/Output Power116kVA150KVA
Overload Capacity1.2 times rated power, sustained for 1 minute
Maximum Efficiency98.5%
Voltage3L/N/PE;230/400V
Frequency50/60Hz
THDi≤3%
Power Factor0.8 leading to 0.8 lagging
System Parameters

Dimensions (W*D*H)1850*1355*21501850*1355*2250
Weightapproximately 2350kgapproximately 2670kg
STS/Isolation Transformer125kVA
Design Life10+ years
ExpansionSupports parallel operation
Enclosure Protection LevelIP54
CoolingAir cooling
Ambient Temperature-20~55℃
Humidity10%~95% relative humidity
Altitude<2000 meters
To learn more about energy storage solutions, please contact us!
